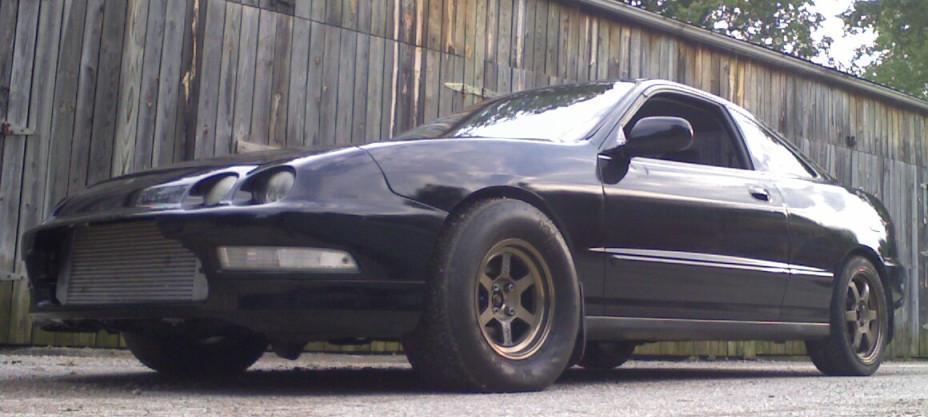

94 Acura Integra RS

It took me about 6 months to save and collect parts for this car, and 3 days to complete.

I'm still working on this car little by little when I get time.

I try to drive it to the track and drag it every weekend its open.

  • 2009' - 11.0 @ 138 - pump gas [516whp], open diff
  • Lightest DC chassis ever made, 2520lbs [oem weight]
  • Fastest, highest horsepower Acura in the state of KY
  • 2011' - 774whp @ 488wtq - 110 octane

Changes for 2010 season:

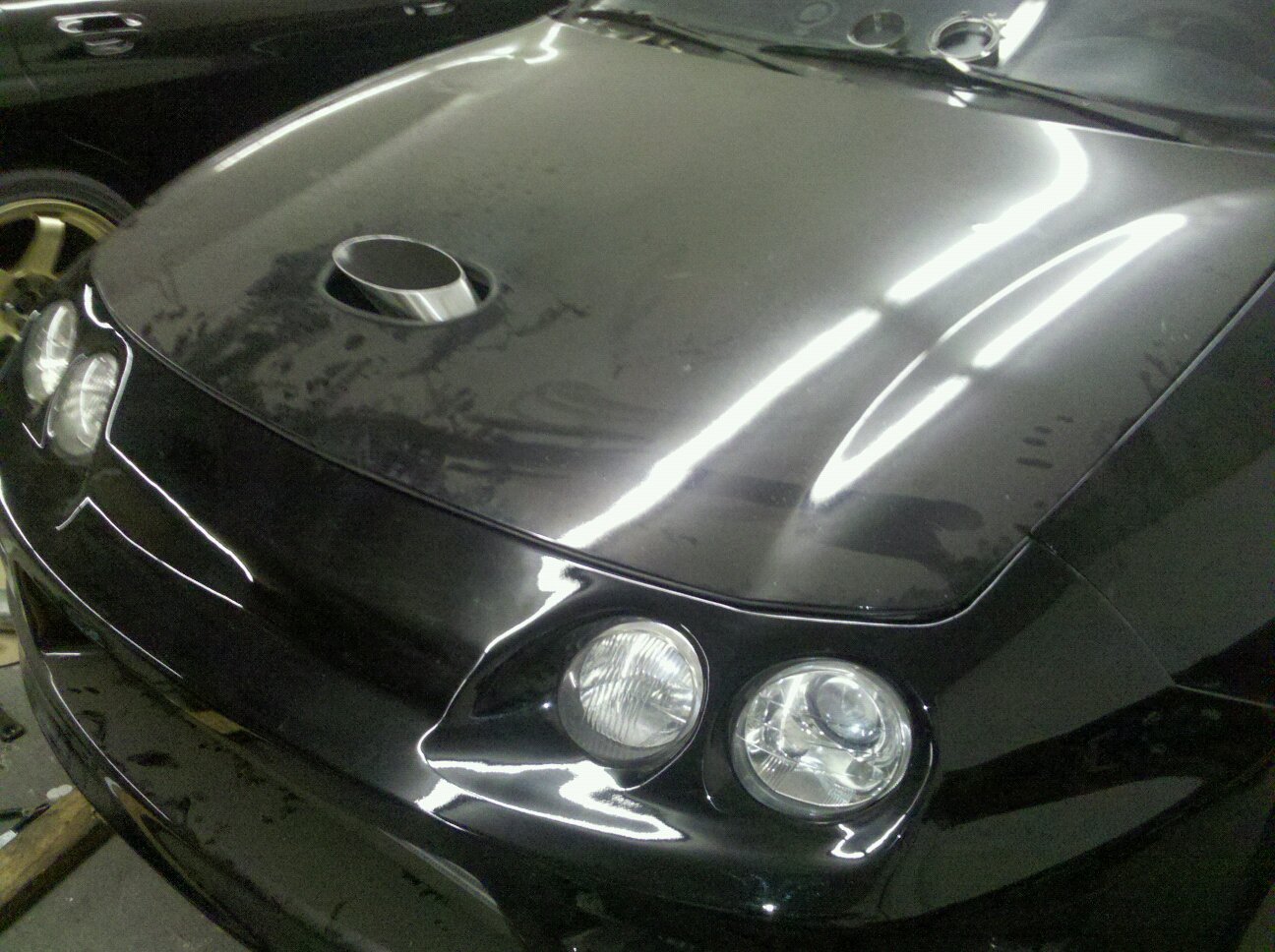

  • 3-5" conical down pipe coming out the hood vs 4" open dp
  • Victor X intake manifold vs Sheet metal
  • 72mm Blox TB vs 68mm Blox
  • Fuel lab FPR vs older fpr
  • Omni Drag coilovers vs Skunk2 Pro
  • Mfactory LSD vs Open diff
  • Exospeed wide body front
  • Exospeed Star 8s with MT radials 27x10.50s [street]

Changes for 2011 season:

  • Exospeed Star8 15" Skinnies
  • Exospeed Star8 15" Fronts 27x10.50 Radial [street]
  • Exospeed Star8 15" Fronts 26x10 Slick [track]
  • Haltech PS2000 vs eCtune [no need, just testing]
  • RacePak Digital Indy Car Dash
  • Full Race pro am twin 44 manifold vs pro am single 44
  • Borg Bullseye 372r race cover, 1.25 exhaust housing
  • 3" hot side side

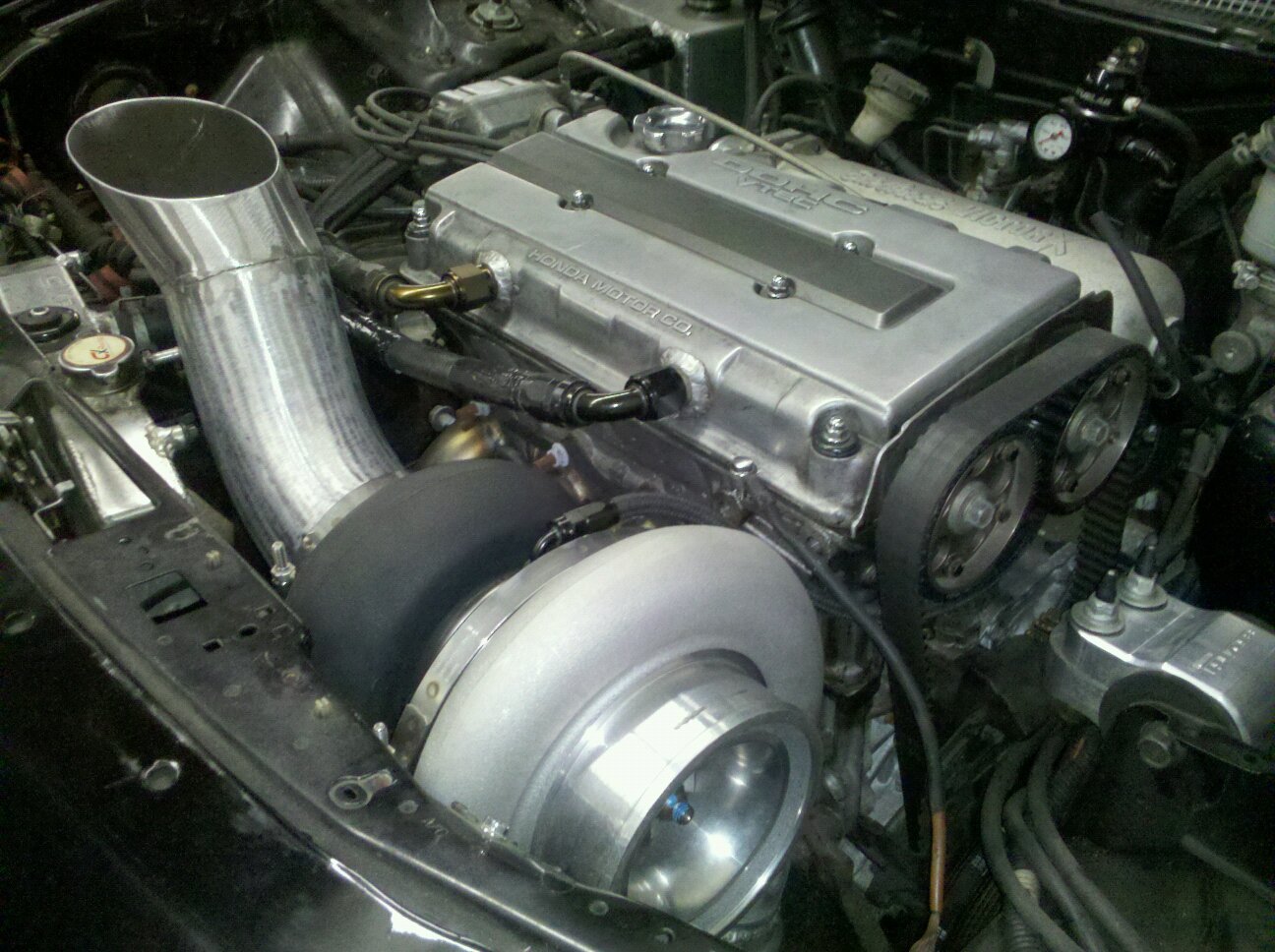

  • New up pipe
  • Drive Shaft Shop axles
  • Clutchmasters Twin Disc clutch
  • Hydro Staging Brake
  • Mfactory Hand Cuff [5th gear delete]
  • T1R G Force Shifter
  • 5" Intake

Changes for 2012 season:

  • Corner balanced
  • Head light intake box
  • 5" Vibrant velocity stack
  • CNC Ported head
  • Ferra valve terrain

Engine

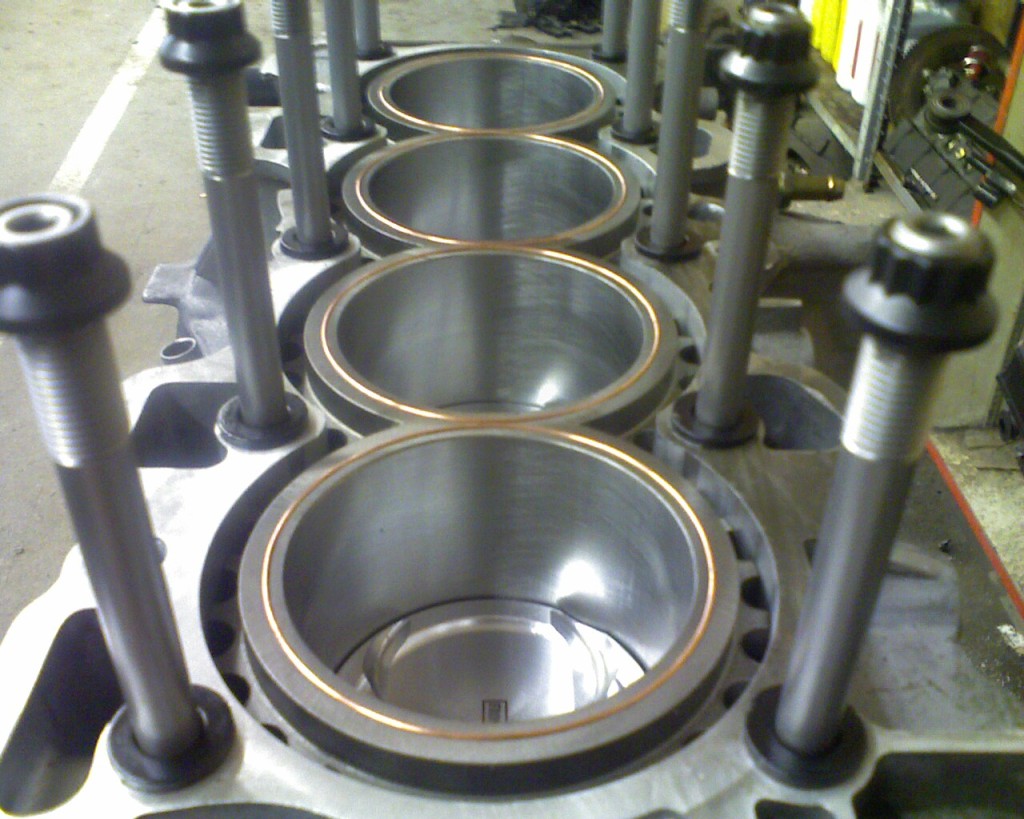

  • Golden Eagle 1300whp/70psi sleeved oringed GSR block
  • Manley 1000whp forged turbo tuff rotating assembly
  • Stroked 2mm
  • ITR ported and polished head
  • Mazworx V1 cams
  • Flat faced valves
  • Shimmed double valve springs
  • Chromoly retainers
  • Bosch fuel system
  • FIC 1000cc pencil injectors @ 75 psi base
  • 1 gal 4 10an sumped returning catch can setup

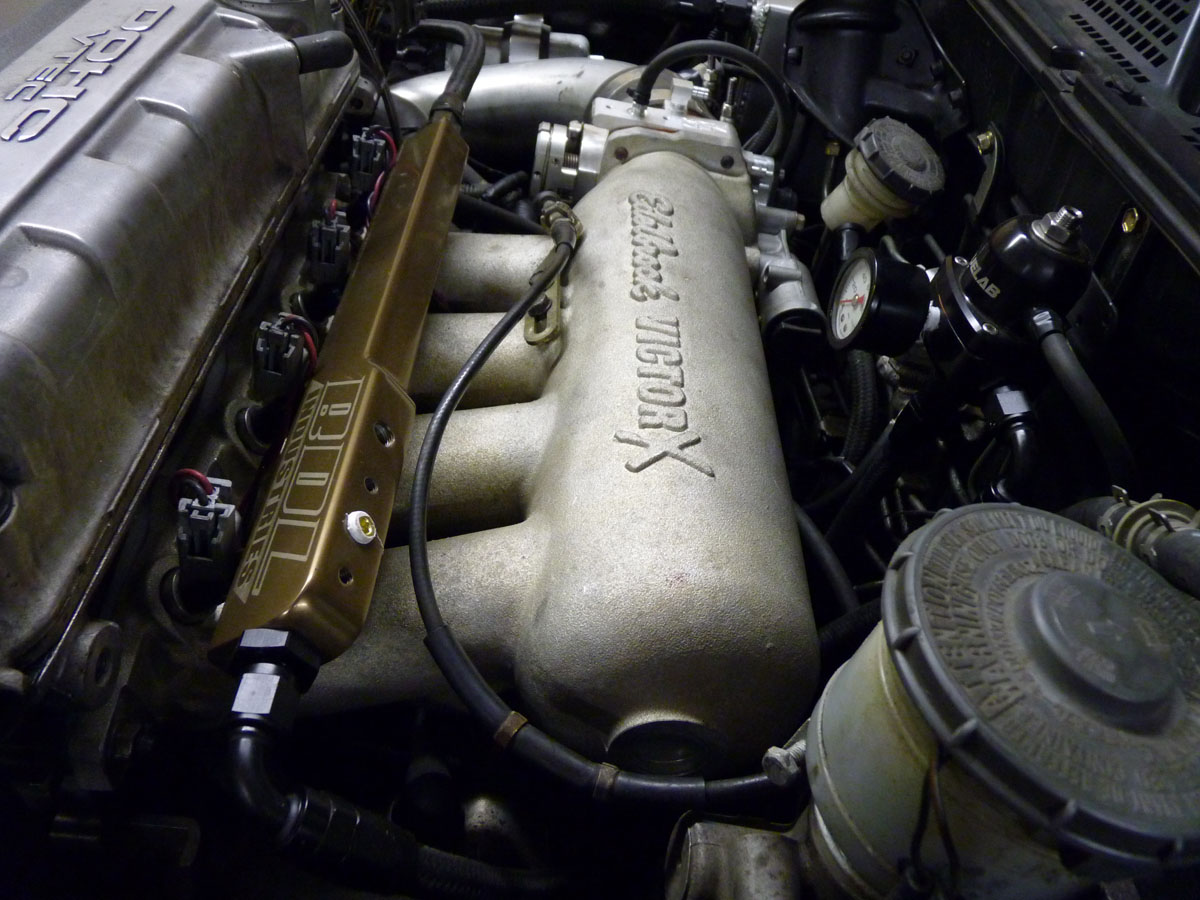

  • Victor X intake mani and 72mm Blox TB

Turbo Kit

  • Borg Warner s372 ETT, s400sx ETT
  • Full Race ProAm top mount manifold
  • Twin Tial 44mm MVR watercooled wastegate's
  • Tial 50mm Q BOV
  • 3" cold side
  • 3" hot side
  • 4"-6" open DP
  • Twin 1.75" open stainless dumps
  • 850whp Precision double back door intercooler

Suspension/Driveline/Wheels

  • Omni Drag suspension, 12k/18k
  • MFactory LSD
  • GSR Tranny
  • Mfactory Hand Cuff [5th gear delete]
  • T1R G-Force Shifter
  • Avid traction bars, billet engine and torque mounts
  • Driveshaft Shop Axles
  • Clutchmasters Twin Disc Clutch
  • Hydro staging brake
  • 15" Exospeed Star 8s / 27x10.50 MT Drag [Street]
  • 15" Exospeed Star 8s / 26x10 M&H Slick [Track]
  • 15" Exospeed Star 8s Skinnies [Track/Street]
  • 13" Volk TE37 / 24.5 MT [F] [Track] For sale*
  • 16" Volk TE37 205 40 [R] [Track] For sale*

Electronics

  • Haltech Platinum Sport 2000 [car also uses ectune at times]
  • RacePak Digital Indy Car Dash
  • Pencil coils
  • M&W Ignition
  • T1R Cam trigger

Body

Mostly stock, gutted inside, just door panels, front seats, dash and center console.

  • Seibon carbon hatch
  • FAL poly rear glass
  • Exospeed 3 piece wide body front end

2011'

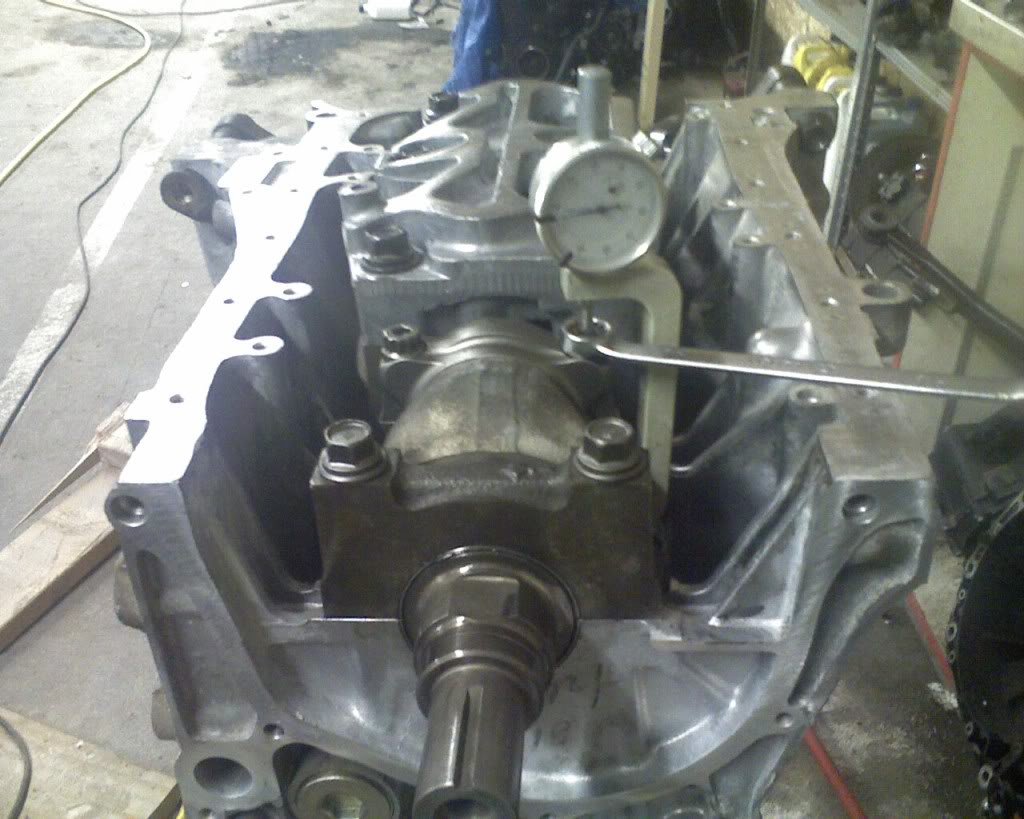

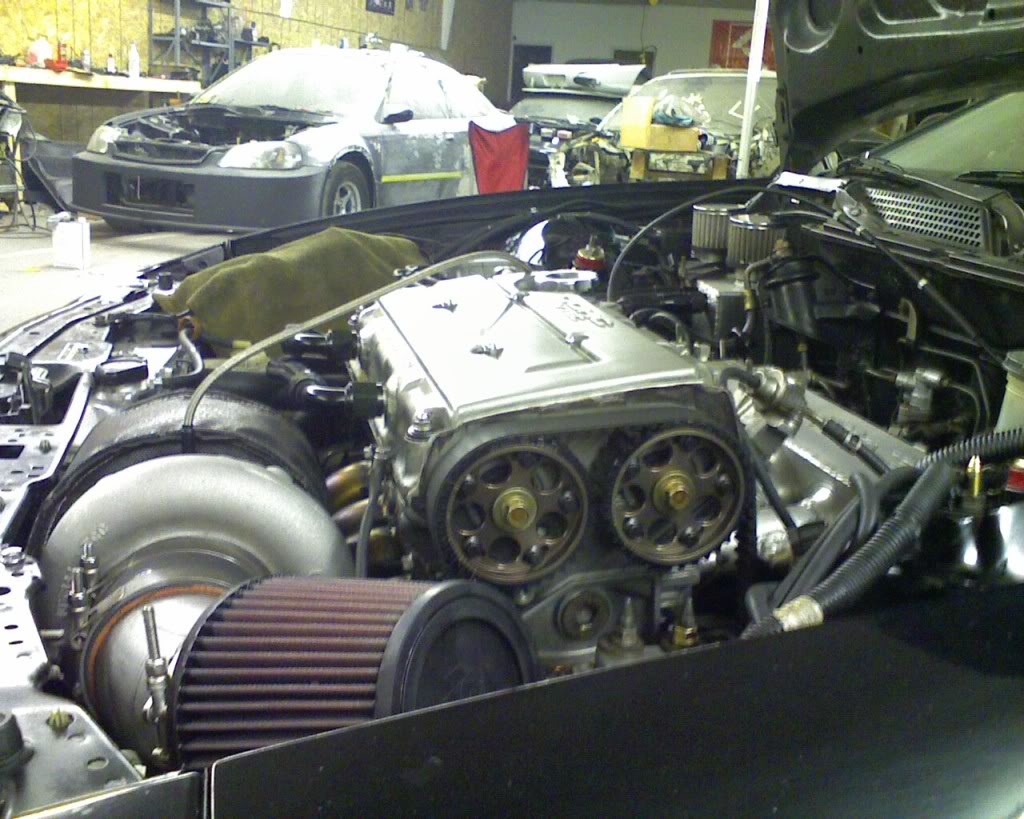

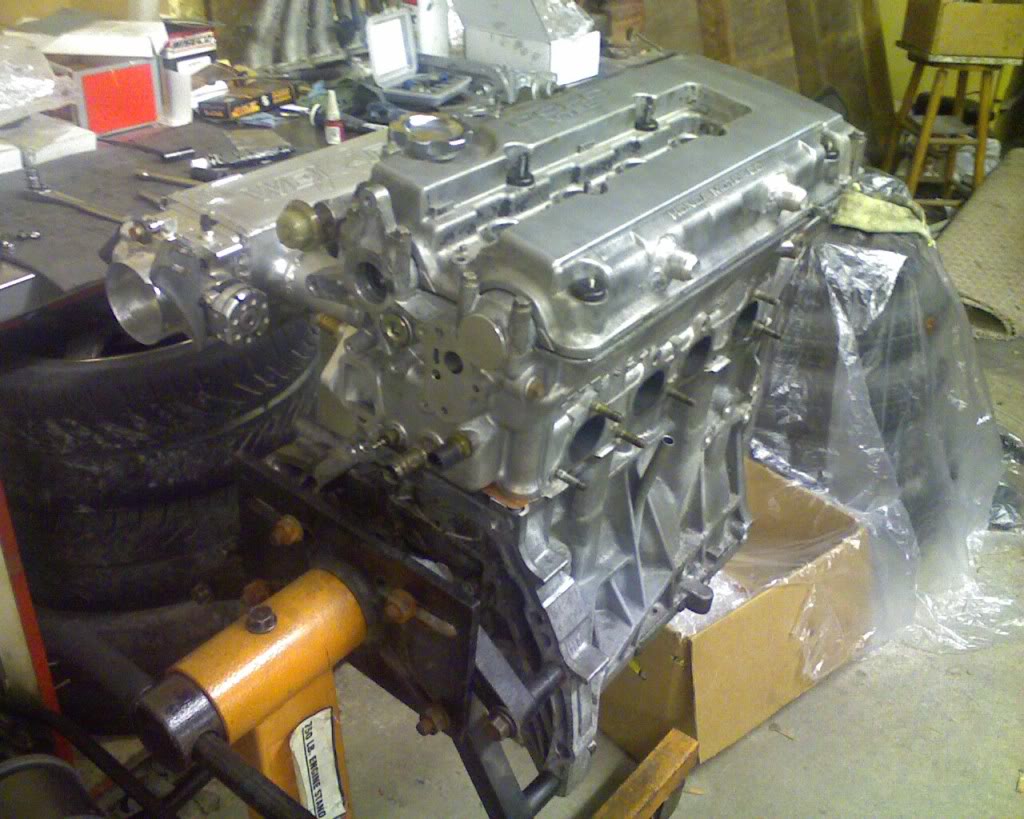

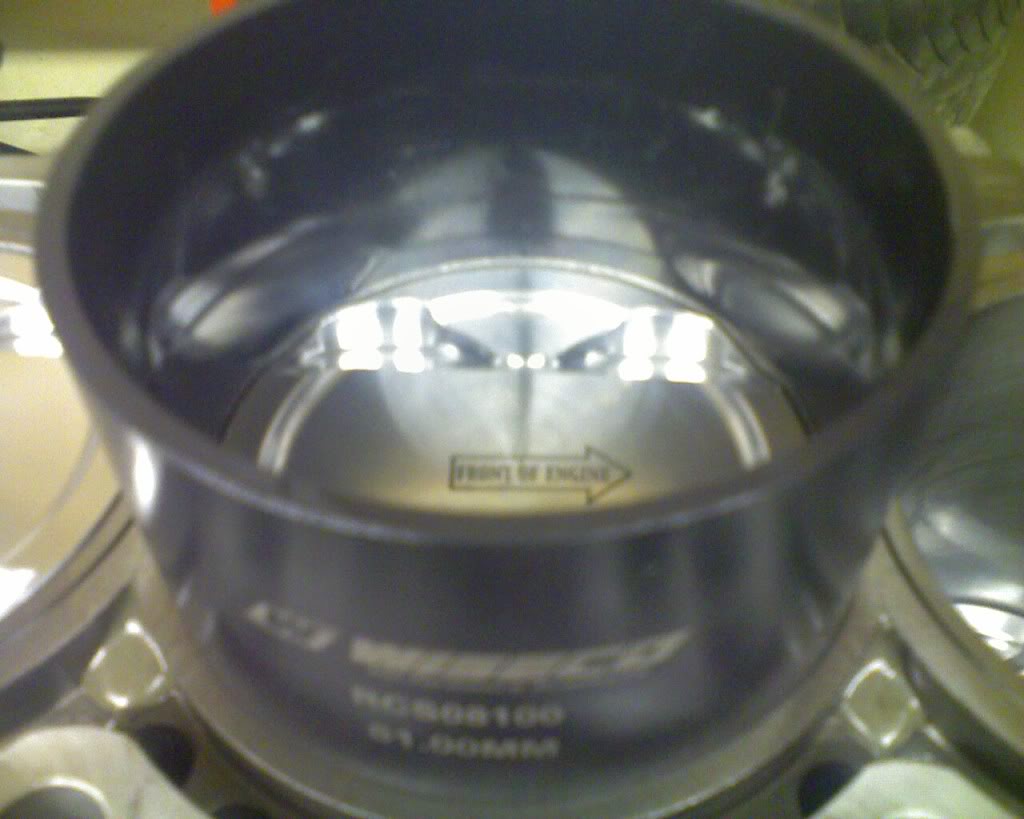

Low quality cell pics of recent work [2011]

2010'

Testing new RacePak dash and Haltech PS2000

Mounted inside a stock cluster ;)

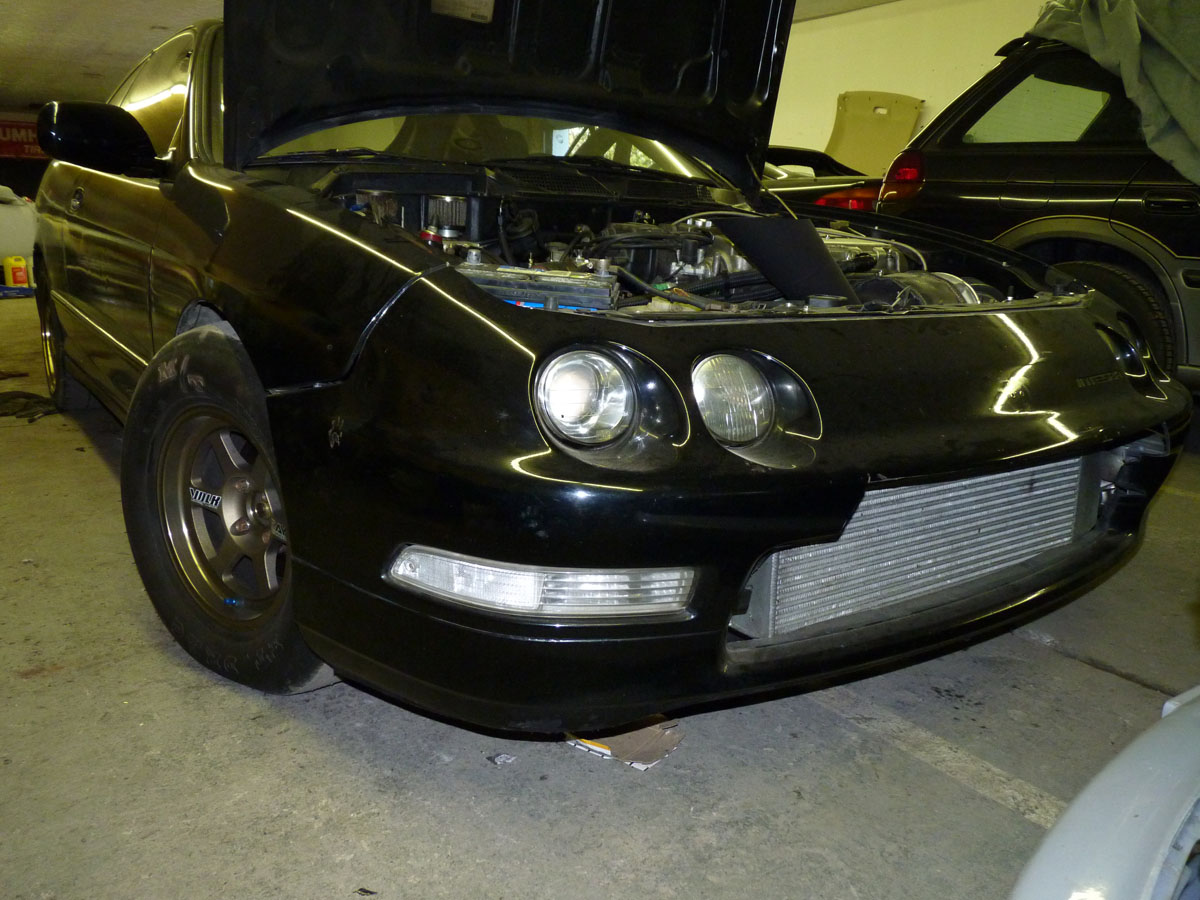

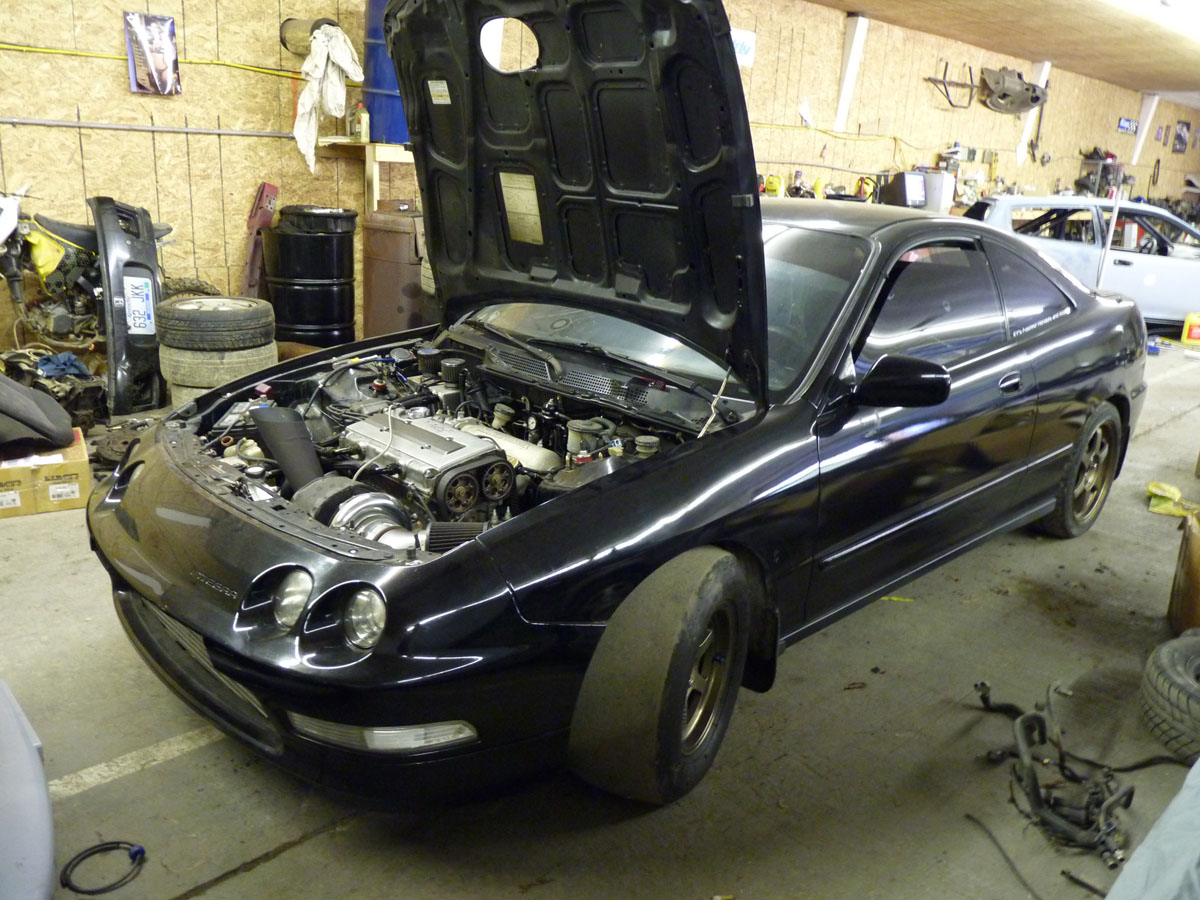

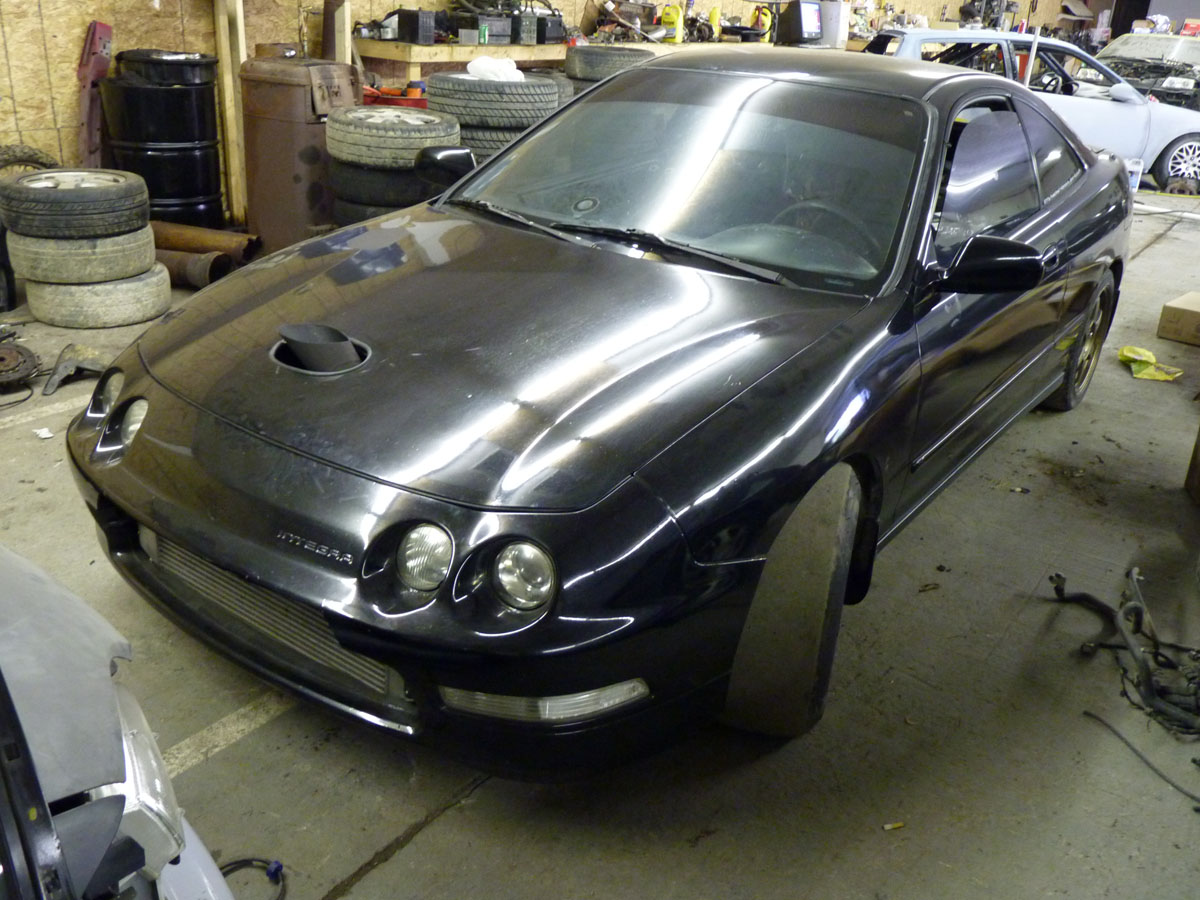

New Front end, multi piece wheels and 27" tires.







2009'

On M&H 235/60/15s

09'
